Electrocoagulation for Produced Water: When Chemical-Free Treatment Makes Sense
Electrocoagulation (EC) occupies an unusual position in the industrial water treatment toolkit: it performs a job that chemical coagulation has done for a century, but without adding any chemical coagulant to the water. For produced water and oil sands process-affected streams with variable, hard-to-predict contaminant loads, that difference matters more than it might first appear.
How Electrocoagulation Actually Works

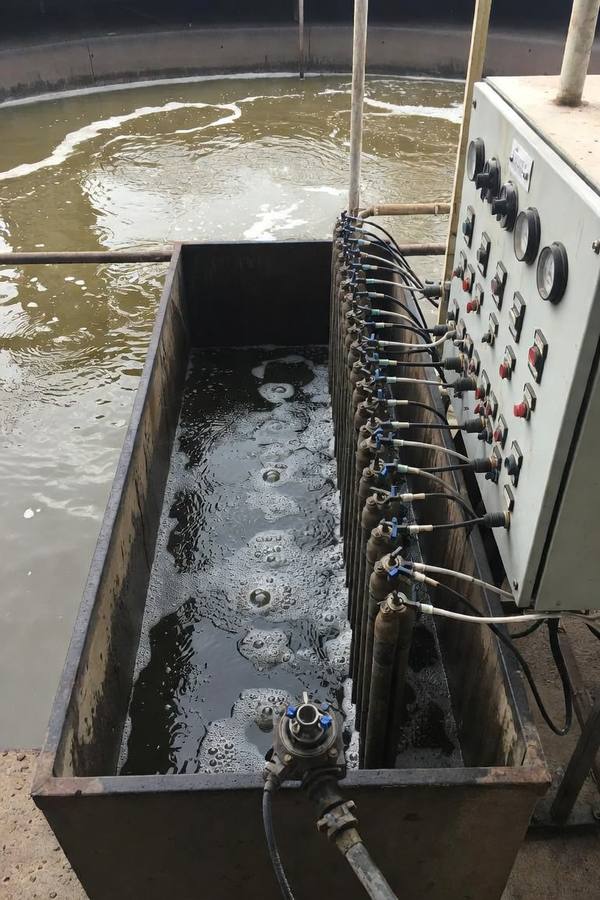

Electrocoagulation passes a direct electrical current through sacrificial metal electrodes — typically iron or aluminum — submerged in the wastewater stream. The current causes the electrodes to dissolve, releasing metal ions directly into solution. These ions immediately begin reacting with dissolved and suspended contaminants, forming coagulated floc through essentially the same chemistry that alum or ferric sulfate dosing would produce — except the coagulant is generated in place, in exactly the quantity the current dictates, rather than added from a chemical tote in a fixed ratio set in advance.
The practical consequence is that EC dose responds dynamically to the applied current rather than to a pre-set chemical pump rate. Operators can adjust treatment intensity by adjusting amperage, without changing out chemical totes or recalibrating a dosing pump.
Why "No Chemical Addition" Matters for Produced Water
Produced water and oil sands process-affected water are notoriously variable feedstocks — composition shifts with formation, season, and upstream process changes in ways that are difficult to fully characterize in advance. Conventional chemical coagulation programs are tuned to an assumed feedwater chemistry; when that chemistry drifts, the fixed coagulant dose can under- or over-treat the stream, and getting the dose wrong in either direction creates problems — under-dosing leaves contaminants untreated, over-dosing adds unnecessary chemical cost and can generate excess sludge.
EC sidesteps part of this problem because the electrochemical reaction is somewhat self-limiting and responsive to the conductivity and composition actually present in the water at that moment, rather than to an assumption made when the chemical program was designed. This does not eliminate the need for process control — current density still needs to be matched to flow and contaminant load — but it removes one layer of chemistry-program fragility from streams that are inherently hard to characterize with full confidence.
What EC Removes Well — and What It Doesn't
EC is effective across a genuinely broad contaminant range for a single unit process:
- Dissolved and colloidal metals: Iron, manganese, and other transition metals are oxidized and precipitated effectively, often achieving 70–99% removal depending on the specific metal species present
- Suspended solids: 80–99% TSS removal is achievable, with performance at the high end of that range for well-characterized streams
- Emulsified and free oil: EC floc effectively captures oil droplets, typically achieving 60–90% oil and grease reduction
- Colour and some organics: Particularly effective on colour-causing compounds and certain classes of dissolved organics that respond to coagulation chemistry
What EC does not do is replace membrane-grade polishing. Dissolved salts pass through EC unaffected — it is a coagulation process, not a desalination process — and it will not achieve the turbidity or particle-size cutoffs that downstream RO membranes require on their own. In nearly every industrial application, EC functions as a primary or intermediate treatment step, with sand filtration, microfiltration, or membrane polishing handling the final water quality requirement.
Where EC Fits in a Treatment Train
GWTS has deployed EC as part of multi-technology treatment systems rather than as a standalone solution — most notably as one component of the Fox Creek Water Management Facility, where EC operated alongside filtration and chemical oxidation to address a complex industrial wastewater stream. This reflects how EC is most often used in practice: as the workhorse coagulation step in a train that also includes coarse filtration upstream and polishing filtration or membrane treatment downstream.
The decision to use EC instead of conventional chemical coagulation usually comes down to three factors: feedwater variability (EC tends to be more forgiving), sludge handling economics (EC sludge volumes are often lower than equivalent chemical coagulation), and site logistics (EC eliminates the need to store, handle, and replenish liquid coagulant chemicals, which matters at remote or temporary sites where chemical resupply is a real operational constraint).
Operating Considerations
EC performance is sensitive to feedwater conductivity — very low-conductivity streams (below roughly 200 µS/cm) reduce current efficiency and may require conductivity enhancement to operate economically. pH also matters: EC performs best in the 6–8 range, and streams well outside that band may need pH adjustment ahead of the EC unit. Electrode consumption is a genuine operating cost that scales with current applied and must be factored into lifecycle cost comparisons against chemical coagulation — EC is not inherently cheaper, it is differently structured, with electrode replacement substituting for chemical purchase.
