Tailings Dewatering in the Oil Sands: Centrifugation vs. Filtration Approaches

Mature Fine Tailings (MFT) treatment is one of the most technically and commercially significant challenges in Alberta oil sands operations — and AER Directive 085 is making it a top capital priority for operators. Two active dewatering technologies dominate: centrifugation and pressure filtration. Each has distinct technical strengths, limitations, and applicability windows.

What Is Mature Fine Tailings?

MFT is the product of bitumen extraction: a dense suspension of fine clay particles (predominantly <44 µm) in saline water, accumulated in tailings ponds over decades of operation. MFT does not consolidate naturally at meaningful rates — the fine clays remain in a quasi-stable state that can persist for centuries without intervention. Alberta oil sands operators collectively manage hundreds of millions of cubic metres of MFT across the Athabasca region.

The fundamental treatment challenge is dewatering: removing sufficient water from the MFT suspension to produce a material with enough geotechnical strength to be trafficable and suitable for land reclamation. AER Directive 085 establishes binding timelines for this — operators must demonstrate progressive reductions in fluid tailings inventory, with specific trafficability targets for treated material.

Centrifugation: The GWTS Approach

High-speed decanter centrifuges separate MFT into two streams: a centrate (water phase) and a dewatered cake. In the GWTS MFT program (2012–2017), large-throughput decanter centrifuges were deployed at commercial scale for a major Alberta oil sands operator. Key process parameters:

• Throughput: Commercial centrifuge installations can process thousands of m³/day, suitable for large-volume programs
• Cake solids content: Typically 45–65% solids by weight for untreated MFT; polymer addition increases this to 55–70%+
• Polymer chemistry: Cationic polyacrylamide (PAM) flocculants — dose optimization through jar testing is critical for performance and cost control
• Centrate quality: Contains fine clays, residual organics, and dissolved solids — typically routed to MF/UF treatment before recycle or discharge
• Geotechnical performance: Cake must achieve minimum undrained shear strength (1–5 kPa for initial trafficability, 5–25 kPa for reclamation targets)

Centrifugation operates continuously — well-suited to high-volume programs where throughput is the priority. The main operational challenges are polymer consumption costs, centrate management, and sensitivity to MFT composition variability.

Pressure Filtration: Complementary Technology

Pressure filtration — using membrane or belt filter presses — applies mechanical pressure to dewater MFT to higher solids contents (60–75% solids by weight) than centrifugation alone achieves. The higher dewatered product strength makes filtration attractive where final cake placement requires high geotechnical stability. However, filtration throughput is significantly lower than centrifugation at equivalent capital cost, making it better suited to smaller-volume programs or final dewatering of pre-thickened or centrifuged cake.

Choosing the Right Approach

Technology selection depends on program scale, MFT composition, target solids content, site infrastructure, and regulatory timeline. Larger programs with volume-driven mandates typically deploy centrifugation as the primary technology. Hybrid approaches — centrifugation followed by filtration polishing — are increasingly being evaluated for operators with the most demanding reclamation targets. GWTS brings direct commercial-scale centrifugation experience from the 2012–2017 program, including polymer optimization, centrate management, and multi-year operational expertise.

Lithium Extraction Water Treatment: How RO Enables the DLE Supply Chain

Direct Lithium Extraction is advancing from laboratory to commercial scale across Western Canada, with multiple projects targeting brine and produced water streams. Advanced RO plays a critical but often underappreciated role in making DLE processes work at scale. This post draws on GWTS’s experience from a $1.5M demonstration-scale DLE project in Calgary (June 2022 – November 2024).

Why DLE Needs RO

Direct Lithium Extraction technologies — whether ion exchange resin-based, adsorption-based, or membrane-based — selectively extract lithium ions from brine solutions. The challenge is that natural brines and produced water streams contain lithium at relatively low concentrations (50–300 mg/L Li), mixed with much higher concentrations of competing ions (Na, K, Mg, Ca, B) and total dissolved solids that can exceed 300,000 mg/L in concentrated oilfield brines.

Advanced RO serves two key functions in DLE process trains:

• Pre-concentration: High-recovery RO reduces the volume of brine requiring DLE processing, increasing lithium concentration and reducing the size and cost of the DLE system
• Post-DLE water management: Producing high-purity water streams for lithium product re-dissolution, washing, and process chemistry preparation

Water Chemistry Challenges at the RO-DLE Interface

The produced water and formation brine streams targeted for DLE are among the most challenging feedwaters for RO: ultra-high TDS, complex scaling chemistry, and variable composition. Key design considerations for RO systems integrated with DLE:

• Scaling risk from Ca, Mg, Ba, Sr, B compounds at high recovery — requires detailed geochemical modelling and aggressive antiscalant protocols
• Silica scaling potential increases significantly above 40°C — temperature management and silica-specific antiscalants required
• Boron rejection at high pH may be required if boron interferes with downstream DLE chemistry
• Consistent permeate TDS (<500 mg/L) critical for DLE selectivity and product purity

Lessons from the GWTS DLE Demonstration Project

GWTS served as Owner’s Representative on a $1.5M demonstration-scale Advanced RO + DLE system for a clean energy technology client, running from June 2022 to November 2024 in Calgary. At demonstration scale, the most significant operational challenge was managing the interaction between RO concentrate composition and DLE selectivity. As RO recovery increased above 70%, the concentration of competing ions (particularly Mg and B) became high enough to affect DLE adsorption kinetics. This drove the decision to operate RO at 65–70% recovery rather than the originally designed 80%, accepting lower volume reduction in exchange for better DLE performance.

The project successfully demonstrated the integrated process flow and generated the performance dataset required for the client’s commercial scale-up planning. The full two-year operational period was critical for observing seasonal feedwater composition variability and its impact on both RO fouling rates and DLE selectivity.

AER Directive 085: What Oil Sands Operators Need to Know About Tailings Obligations

AER Directive 085 — Fluid Tailings Management for Oil Sands Mining — came into effect in February 2022, replacing Directive 074 as the primary regulatory framework governing fluid tailings volumes and reclamation timelines. For water treatment and dewatering professionals, understanding D085 is essential context for the technology investment decisions operators are now being forced to make.

What D085 Requires

D085 establishes a lifecycle approach to tailings management, requiring operators to submit detailed Tailings Management Plans (TMPs) and demonstrate progressive compliance against binding performance targets. Key requirements with direct implications for active dewatering technology:

• Fluid tailings inventory reduction: Operators must demonstrate year-over-year reductions in the volume of fluid tailings (MFT + froth treatment tailings) as a percentage of cumulative bitumen production
• Ready-to-reclaim (RTR) criteria: Treated tailings must achieve specific geotechnical strength thresholds and surface stability before counting toward compliance
• Progressive reclamation: Land must demonstrably advance toward final reclamation, not simply be treated and stockpiled
• Annual reporting and enforcement: AER has significantly increased enforcement rigour relative to D074, with the ability to impose production caps on operators who fail to meet tailings targets

Technology Implications

D085 creates a direct economic incentive for operators to deploy active dewatering technologies at scale. Natural consolidation of MFT is far too slow to meet the directive’s timelines — operators must actively dewater to demonstrate compliance. The directive is technology-neutral: it specifies performance targets, not the methods to achieve them. This means any technology producing material meeting RTR criteria can count toward compliance.

In practice, centrifugation has been the most widely deployed active dewatering technology since D074, and continues to dominate commercial programs under D085. Pressure filtration, thickened tailings, and co-disposal approaches are also used, often in combination. The choice depends on MFT composition, available capital, and site infrastructure.

Water Treatment at the Tailings-Reclamation Interface

An often-overlooked aspect of tailings management under D085 is the water treatment requirement for process waters released during dewatering. Centrate from MFT centrifugation contains elevated total organic carbon, naphthenic acids, conductivity, and fine suspended solids — it cannot be discharged or recycled without treatment. MF pretreatment is typically required ahead of any further RO or polishing treatment, and the water chemistry of tailings pond water often presents among the most challenging feedwater conditions in oil sands water treatment.

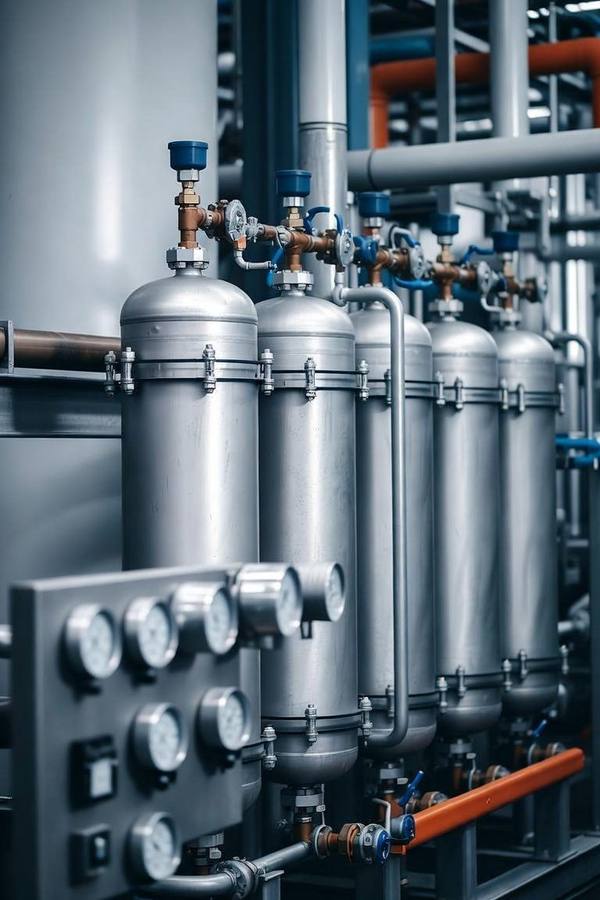

SWRO at 1,200 psi: Treating High-Salinity Oil Sands Pond Water

As oil sands saline pond TDS concentrations climb above 30,000–50,000 mg/L, conventional brackish water RO systems designed for 400–900 psi can no longer achieve meaningful water recovery. Seawater RO operated at 1,000–1,200 psi offers a membrane-based pathway to treat these high-salinity streams. GWTS operated a 1,200 psi SWRO pilot at a Northern Alberta mine site from September to December 2025.

Why Saline Ponds Are Getting Harder to Treat

Oil sands saline ponds accumulate as a by-product of tailings management and produced water recycling. Over time, evaporation concentration, ion accumulation from formation water, and reduced dilution from process water recycling push TDS concentrations upward. Ponds that were originally treatable with brackish RO at 600 psi may now require 900–1,200 psi to overcome osmotic pressure at the target recovery.

The osmotic pressure of a solution increases roughly linearly with TDS. Seawater at 35,000 mg/L TDS has an osmotic pressure of approximately 27 bar (390 psi). Oil sands saline pond water at 40,000–50,000 mg/L TDS requires approximately 30–38 bar (435–550 psi) just to initiate permeation. Operating pressure of 1,200 psi (83 bar) provides sufficient driving force for meaningful water recovery even at these TDS concentrations.

Process Design for SWRO in Northern Alberta

The GWTS Northern Alberta SWRO pilot involved several design challenges not typically encountered in seawater desalination:

• Scaling chemistry: Unlike seawater, oil sands pond water contains elevated barium, strontium, and silicon concentrations that create aggressive scaling risk. BaSO₄ and SrSO₄ scale is essentially irreversible once formed — pretreatment and antiscalant protocols were critical
• Organic fouling: Dissolved organic carbon from bitumen processing creates organic fouling layers on TFC membrane surfaces, increasing cleaning frequency relative to seawater applications
• Temperature variation: Northern Alberta ambient temperature swings require insulated and heated infrastructure to maintain feed water above 5°C for consistent membrane performance
• MF pretreatment: SWRO membranes are highly sensitive to fouling. MF pretreatment to SDI <3 was critical for achieving stable flux during the pilot

Pilot Results and Observations

The four-month GWTS SWRO pilot provided a validated performance dataset for the operator’s commercial feasibility assessment. Key findings: stable RO flux was achieved after the first three weeks following antiscalant dose optimization; an aggressive CIP protocol (bi-weekly acid + caustic sequence) was required to maintain productivity; and achieved water recovery of 45–55% was consistent with process modelling predictions for the feedwater chemistry. The pilot data forms the basis of design for a potential commercial SWRO installation the operator is now evaluating.

Pilot Testing Methodology: How to Design a Membrane Pilot That De-Risks Capital

A membrane pilot program is one of the most valuable investments a project team can make before committing full capital to a water treatment system. Done well, it eliminates the technical unknowns that cause budget overruns and performance disputes during commissioning. Done poorly, it generates ambiguous data that delays decisions without reducing risk.

Define the Decision the Pilot Must Support

Before designing any aspect of the pilot, define the capital decision it must enable. Is the goal to confirm membrane technology selection and size a full-scale system? To validate pretreatment adequacy for a proposed RO installation? To demonstrate performance to a regulator or project financier? The answer determines every design choice that follows — scale, duration, instrumentation, and what constitutes a “successful” pilot.

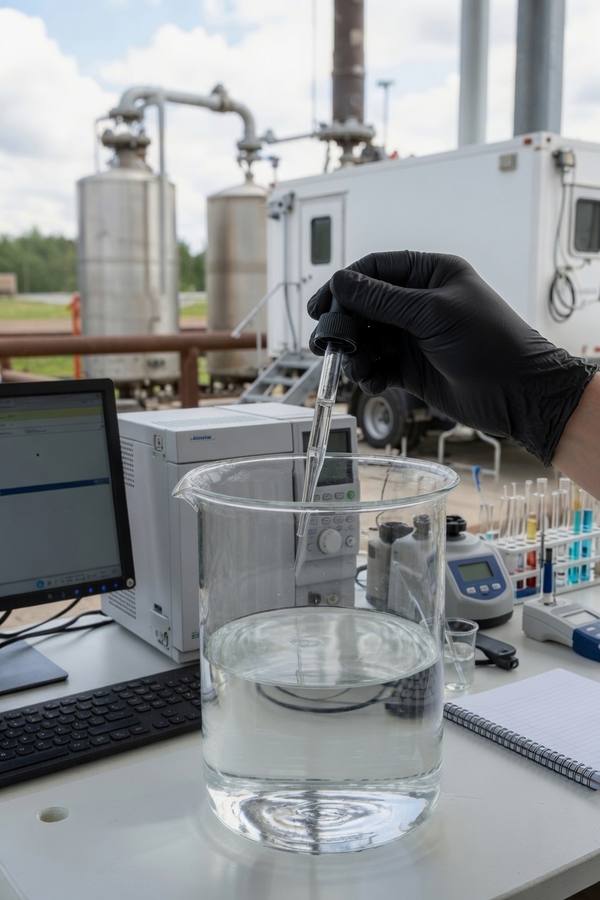

Feedwater Characterization First

Comprehensive feedwater characterization before pilot design is non-negotiable. Sampling at multiple points in the water cycle, across seasons, and under different operating conditions provides the input data for scaling analysis, membrane selection, and pretreatment design. Surprises during a pilot almost always trace back to incomplete or non-representative pre-pilot water sampling.

GWTS routinely performs full water chemistry panels including: TDS, TSS, TOC, TIC, pH, turbidity, conductivity; full ion panel (Na, K, Ca, Mg, Ba, Sr, Cl, SO₄, HCO₃, CO₃, SiO₂, B); metals by ICP-MS; oil & grease (EPA 1664); and SDI/MFI per ASTM D4189.

Scale and Duration

Pilot scale should be large enough to produce statistically meaningful flux and rejection data. For MF/RO systems, bench-scale testing (0.1–1 GPM) is appropriate for membrane screening and pretreatment optimization; pilot-scale testing (1–10 GPM) provides the flux, fouling, and CIP data needed to design a full-scale system.

Duration is often underestimated. Short pilots (1–2 weeks) can demonstrate initial performance but miss seasonal feedwater variation and the fouling trajectory that matters most for lifecycle cost projection. GWTS recommends a minimum of 4–8 weeks for a meaningful RO pilot on produced water, with longer programs (3–6 months) where seasonal variation is a known factor.

The Deliverable: A Bankable Basis of Design

A pilot program is only as valuable as its final report. The deliverable should be a formal Basis of Design document that translates pilot data into full-scale system design parameters: design flux, recovery, element selection, pretreatment specification, CIP protocol and frequency, and projected operating costs. GWTS pilot programs deliver complete performance data records, fouling and CIP analysis, full-scale system design basis, and capital and operating cost estimates for the recommended full-scale configuration.

Water Treatment and Indigenous Reconciliation in Northern Alberta: Moving Beyond Compliance

Water is central to Indigenous culture, identity, and sovereignty across Northern Alberta. Industrial water treatment projects that operate on or near First Nations traditional territories carry responsibilities that go well beyond regulatory consultation requirements — and companies that recognize this early in project development tend to build more successful projects.

The Current State of Consultation

Alberta’s regulatory framework requires meaningful consultation with affected Indigenous communities before approvals are granted for new oil sands and industrial projects. In practice, “consultation” has too often meant notification — informing communities of decisions already made, rather than genuinely incorporating their perspectives into project design. The result is a well-documented pattern of community skepticism toward industrial consultation processes, even where legal compliance is technically achieved.

What Meaningful Engagement Looks Like

GWTS has found that meaningful engagement — the kind that actually builds trust and leads to better project outcomes — shares several consistent characteristics:

• Early engagement: Starting community conversations before scopes are fixed, when there is still genuine opportunity to influence project design decisions
• Economic participation: Moving from employment targets to ownership and equity structures that create lasting community wealth, not just project-duration wages
• Environmental stewardship alignment: Recognizing that Indigenous water protection values and industrial water treatment objectives are often aligned — both seek to minimize industrial impacts on water quality
• Continuity: Maintaining relationships between projects, not just activating engagement when regulatory timelines require it

The GWTS Approach

GWTS targets 60–80% local and Indigenous workforce participation on Northern Alberta projects. We maintain active relationships with First Nations communities in the regions where we work, and are prepared to structure joint venture arrangements with Indigenous businesses and development corporations when projects warrant it. We believe that water treatment expertise is something that can and should be built within Indigenous communities — not just contracted in from outside.

The practical reality is that projects which invest in genuine community partnership tend to have fewer regulatory delays, stronger workforce stability, and better long-term reputations. Reconciliation and project success are not competing objectives — they reinforce each other when approached with honesty and commitment.
